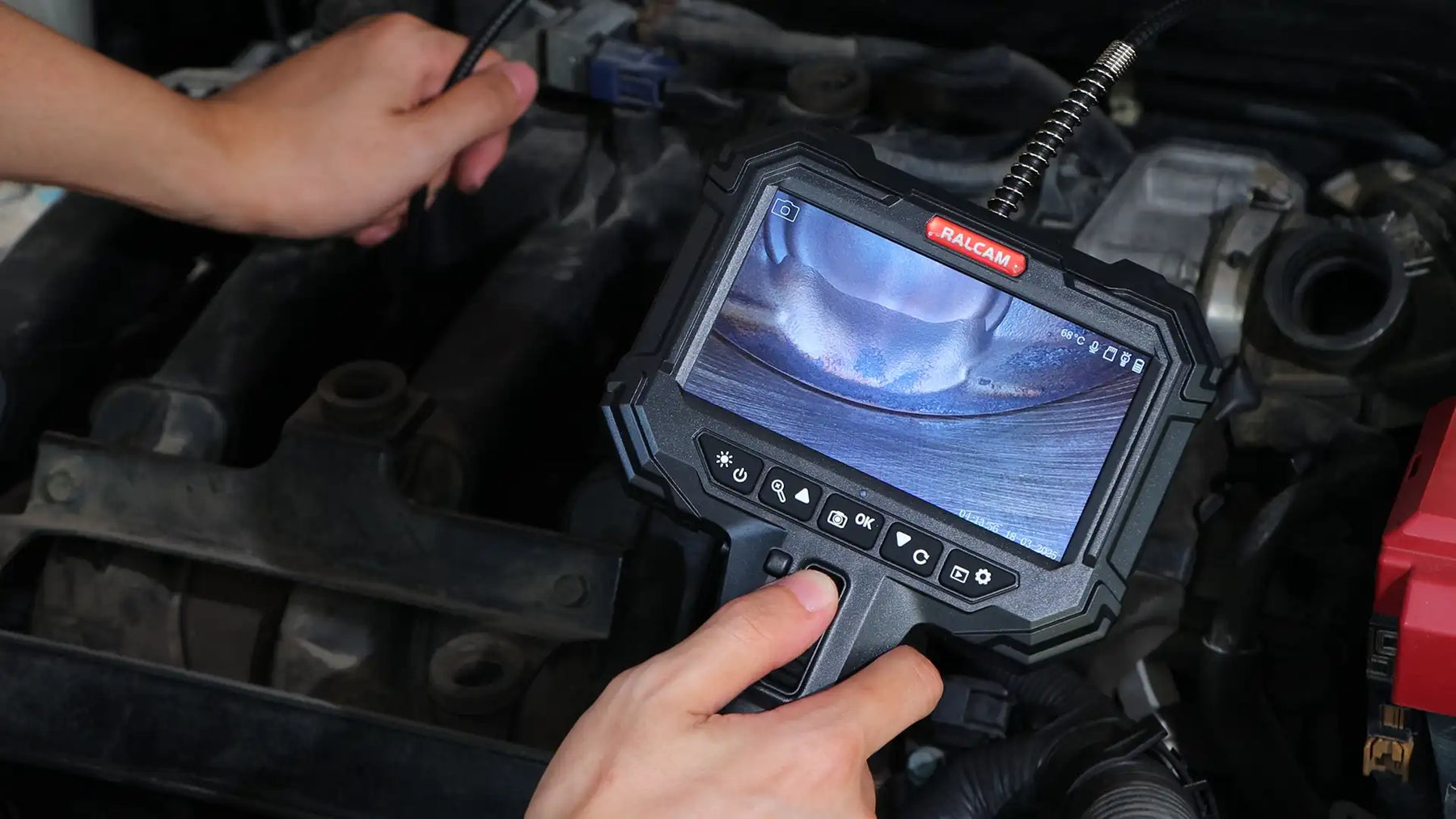

3 Engine Inspection Case Studies Using a Borescope

Real inspection cases provide a clearer picture of what a borescope can actually do in engine diagnostics. By looking at common issues such as turbo damage, cylinder wall wear, and carbon buildup, teams can better understand how visual inspection improves decision-making.

Case 1: Turbo Inspection

What Was Suspected

In the first case, a technician suspected turbo-related damage because of abnormal performance and noise. Instead of disassembling the entire system immediately, a borescope was inserted through an access point to inspect the internal passage and turbine area.

What the Borescope Revealed

The inspection revealed surface damage and deposit buildup, allowing the maintenance team to confirm the fault faster and prepare the right repair plan.

Case 2: Cylinder Wall Damage

Visual Signs of Wear

The second case involved possible cylinder wall damage. The engine showed signs of reduced efficiency, and there was concern about internal wear. A borescope inspection through the spark plug opening revealed scoring marks on the cylinder wall.

Repair Implications

This visual confirmation helped the team determine that the issue was not external and that deeper mechanical intervention would be required.

Case 3: Carbon Buildup Diagnosis

Areas Inspected

The third case focused on carbon buildup. Excessive deposits inside the combustion area can lead to performance loss, inefficient fuel use, and other long-term problems. By inspecting the relevant area with a borescope, technicians were able to assess the severity of the buildup.

Maintenance Recommendation

The inspection results led to a recommendation for cleaning or preventive maintenance before the problem became more serious.

What These Cases Teach Us

These cases highlight several important lessons. First, borescopes help reduce unnecessary disassembly by confirming faults earlier. Second, they improve maintenance decisions by providing visual evidence instead of assumptions. Third, they support documentation through image and video records, which are useful for internal review, customer explanation, and future comparison.

For engine maintenance teams, case-based inspection examples are valuable because they show how the tool performs in real situations, not just in theory. The more teams understand practical applications, the better they can integrate borescope inspection into everyday workflows.
