Daily Maintenance and Care Guide for Industrial Inspection Endoscopes

Why Regular Maintenance Matters

Industrial inspection endoscopes — including rigid borescopes, flexible fiberscopes, and video borescopes — are precision optical instruments that operate in demanding environments. A consistent maintenance routine protects your investment, extends the service life of the probe, and ensures image quality remains sharp when it matters most.

Daily Cleaning Routine

After Every Use

1. Wipe the insertion tube: Use a soft, lint-free cloth lightly dampened with isopropyl alcohol (70%) to wipe down the full length of the insertion tube.
2. Clean the distal tip: Gently wipe the camera lens and LED illumination window with a cotton swab moistened with lens-cleaning solution. Never use abrasive materials.
3. Inspect the bending section: Check the articulation section for any debris lodged in the joints. Use a soft brush or compressed air (low pressure) to clear particles.
4. Dry thoroughly: Allow all components to air-dry completely before storage.

Cleaning the Display Unit

Wipe the screen and housing with a dry or slightly damp microfiber cloth. Avoid spraying liquids directly onto the unit. Keep ventilation slots clear of dust.

Insertion Tube Care

• Avoid sharp bends: Never force the tube into a bend radius smaller than the manufacturer’s minimum specification.
• Coil correctly for storage: Always coil the insertion tube in large, loose loops (minimum 15 cm diameter).
• Protect the tip: When not in use, fit the protective cap over the distal tip.
• Check for outer sheath damage: Before each use, run your fingers along the full length of the tube to feel for cuts, abrasions, or soft spots.

Optical System Maintenance

• Lens cleaning: Use only dedicated optical lens cleaning solution and lint-free lens tissue.
• Avoid touching the lens: Fingerprints leave oils that attract dust and degrade image clarity.
• Check for fogging: If images appear hazy, the lens may have internal condensation. Allow the scope to equilibrate to room temperature before use.

Articulation System Care

• Exercise the articulation regularly: Even when not in active use, cycle the articulation control through its full range of motion monthly.
• Lubricate per manufacturer guidelines: Some models require periodic lubrication of the articulation mechanism.
• Inspect control response: If the tip feels stiff or does not return to center smoothly, have the unit serviced before the next inspection job.

Storage Best Practices

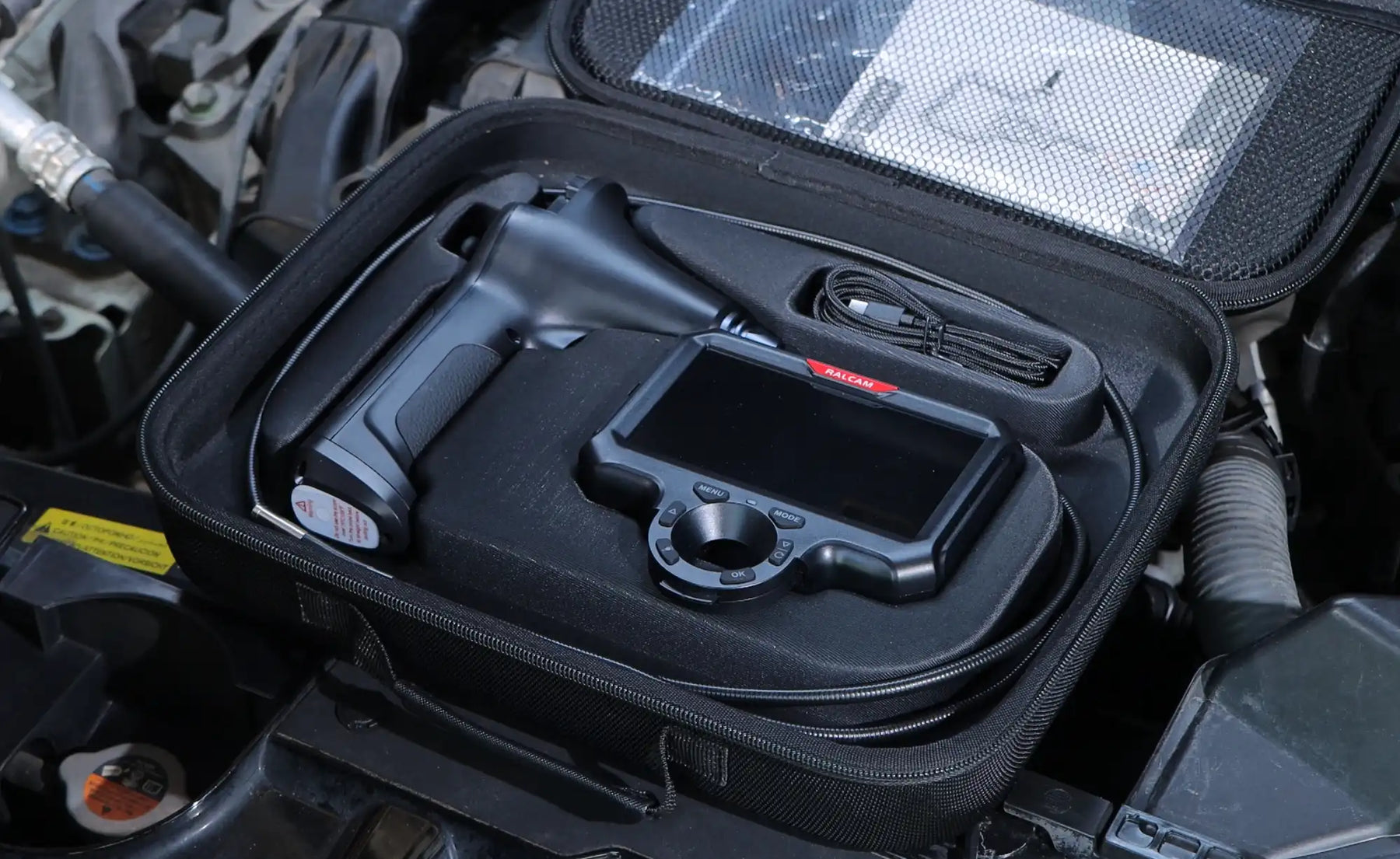

• Use the original carrying case: Hard-shell cases with foam inserts protect against impact.
• Store in a dry environment: Humidity above 80% promotes corrosion and mold growth on optical surfaces.
• Temperature range: Store at 10–40°C (50–104°F). Avoid leaving equipment in vehicles during extreme heat or cold.
• Keep away from solvents: Store endoscopes away from chemicals and fuels that can degrade the outer sheath material.

Battery and Power System Maintenance

• Charge regularly: Avoid fully depleting the battery. Store with a 40–60% charge if not in use for extended periods.
• Inspect connectors: Check power connectors and USB ports for bent pins or corrosion.
• Replace aging batteries: If battery life has dropped significantly from the original specification, replace the battery pack.

Periodic Inspection Checklist

Perform a thorough inspection every 3 months or after 50 hours of use:

• Full-length visual inspection of insertion tube sheath
• Lens clarity check — capture a test image on a white surface
• Articulation range and smoothness test
• LED brightness check
• Connector and cable integrity check
• Battery capacity test
• Water/dust ingress test (if IP-rated model)

When to Send for Professional Service

Some issues require factory or authorized service center attention: cracked or scratched distal lens, insertion tube kink or permanent deformation, articulation wire breakage, water ingress inside the insertion tube, or significant drop in image resolution despite clean optics.

Conclusion

A well-maintained industrial inspection endoscope delivers years of reliable service. The investment in a few minutes of cleaning and careful storage after each use pays dividends in consistent image quality, reduced repair costs, and longer equipment life.
